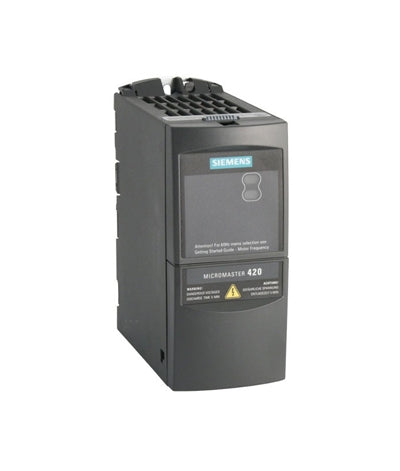

You need a frequency inverter which can be adapted to your individual requirements without any great effort? No problem for our MICROMASTER 420 ? the universal inverter for 3-phase networks and optional field-bus connection. Thanks to its modular design, the extensive standard functions can be supplemented with a wide variety of options. And you do not even need tools, as the operator panels and the communications modules can be simply plugged in. Screwless control terminals ? as with the rest of the family ? make terminal connection child's play.

Key Features

  • Compact design
    Base components such as reactors and filters complement the compact solution
  • Versatile
    Easy start-up for multiple use
  • Communicative
    Various communication interfaces ensure usability with the most common network applications

Technical Specifications

New Column New Column
Voltage and power range
  • 200-240 V,  10%, 3 AC, 0.12 to 5.5 kW (0.16 to 7.5 HP)
  • 380-480 V,  10%, 3 AC, 0.37 to 11 kW (0.5 to 15 HP)
  • FCC (Flux Current Control), multipoint characteristic (parameterizable V/f characteristic), V/f characteristic
Types of control
200-240 V,  10%, 1 AC, 0.12 to 3 kW (0.16 to 4 HP)
Typical Applications
Conveyor systems, material transport, pumps, fans, mechanical engineering.
