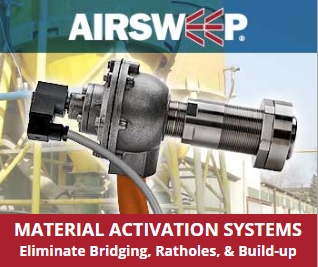

AirSweep® material flow systems provide on-demand flow of even the toughest materials by eliminating bridging, ratholes and build-up. Each powerful pulse of the AirSweep nozzle directs a high-pressure/high-volume, 360-degree burst of compressed air or gas between the material and vessel wall to lift and sweep stagnated material back into the flow stream.

Benefits of an AirSweep® System:

  • Patented valve design utilizes only one moving part, ensuring an immediate reseal after each pulse to prevent clogging and material build-up.
  • Each pulse activates material up to an 8 foot diameter for a first-in, first-out controlled flow, facilitating use of full bin capacity.
  • Reduces flushing/cleaning time between product runs and improves batch uniformity.
  • System is mounted on the outside of the vessel for easy cleaning and maintenance.
  • Energy efficient – uses plant air.
  • No damage, vibration, stress or wear to container walls.
  • Mount to metal, concrete, fiberglass or wood vessels.
  • Manufactured from high grade steel for long service life.

Speed

Reduce flushing/cleaning time between product runs

Quality

Improve batch uniformity

No Damage to Equipment

Prevent vibration, stress or wear to container walls

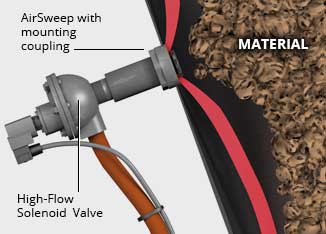

How AirSweep® Works?

Industry Use & Applications

From titanium dioxide to liquid cheese, AirSweeps have successfully handled the toughest bulk material. Industries such as Food Processing, Feed & Grain, Aggregate & Mining, Pharmaceutical Processing, and Chemical Processing are utilizing AirSweep systems to effectively and reliably keep their materials flowing.

Food/
Agriculture

Construction/
Mining

Chemicals

Others


Animal feeds
Brewers grain
Cocoa
Coffee
Corn
Flour
Grains
Hops
Salt
Soybeans
Spices
Starches
Sugar
and more…


Aluminum
Bentonite
Coal
Copper
Diatomaceous Earth
Gypsum
Iron ore
Limestone
Magnetite
Phosphate
Shale
Soda Ash
and more…


Activated carbon
Adipic acid
Aluminum chloride
Boric acid
Chlorine
Herbicide
Hydrated lime
Iron Oxide
Polyacrylamide
Titanium dioxide
Zinc
and more…


Acetate
Cement
Chalk
Cork
Detergent
Fertilizer
Fly ash
Pharmaceuticals
Plastics
Polymers
Resins sludge
Wax flakes
Wood chips
and more…

The Best Material Flow Aid System

AirSweep® nozzles are available in multiple sizes. Design, mounting and material of construction options suit virtually any vessel, process and material.
