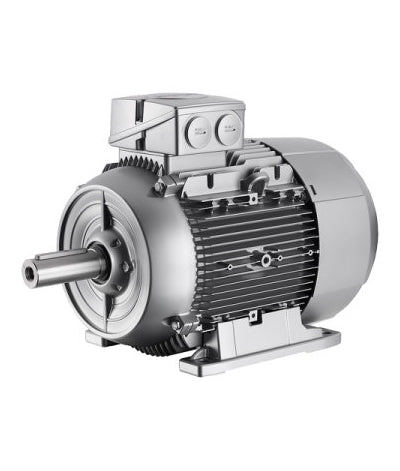

The 1LE1/1PC1 motor family comprises two main series: 1) SIMOTICS GP General Purpose 1LE1/1PC1 (Aluminum housing) For a wide range of standard drive tasks in the industrial environment. Thanks to their particular low weight, they are suitable for applications in pumps, fans and compressors. Power output range from 0.55 -22 kW, frame sizes 80 - 160 2) SIMOTICS SD Severe Duty 1LE1 (Cast-iron housing) First choice for heavy duty applications under harsh environmental conditions. They resist dust or vibration in mills and mixers as well as the corrosive atmosphere in the petrochemical industry. Power output range from 0.75 - 200 kW, frame sizes 100 - 315
Key Features
- Compact design
- Easy mounting and installation
- Minimized rotor losses for efficiency
- Modular design: encoders, brakes and fans can be easily added
Brief overview : Rated speed : 2P ,4P ,6P and 8P Voltage : All commonly used voltages 50Hz/60Hz
Efficiency classes: IE1 (Standard Efficiency) IE2 (High Efficiency) IE3 (Premium Efficiency) Typical Applications Pumps, fans and compressors
