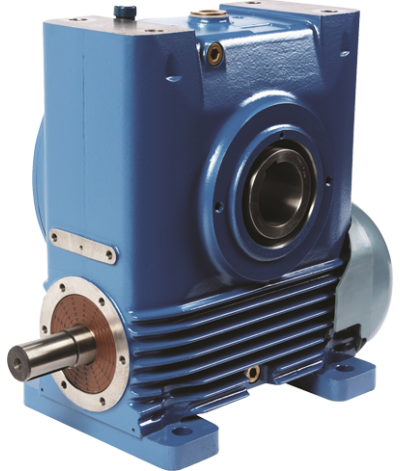

PalaDrive A Series Worm Gear
PalaDrive A Series Worm Gear

PalaDrive A Series Worm Gear

Vendor
PalaDrive
Regular price
Regular price
Sale price
Unit price
per
Availability
Sold out

Series A junior worm gear range is offered in unit sizes 280, 410, 510, 610, 730 and 860 based on a single universal case for each size, giving a high degree of common parts and interchange ability.

Features

  • Accepts standard IEC/NEMA motors
  • Cast Iron Case
  • High torque capacity
  • Lubricated for life
  • Ready built with modular accessories
  • Atex compliant

Benefits

  • Non dedicated industry standard motor readily available. Free motor brand choice
  • Robust design, minimal service. Increased plant availability
  • Allows downsizing. Reduced costs
  • Fit and forget. Reduced maintenance costs
  • Fast customisation and availability
  • Can be supplied against Group 2 or 3 for surface industries in designated hazardous locations, Zones 1 and 2 for gases, vapours and mists and Zones 21 and 22 for dust.

Technical Specifications

Unit Sizes
280, 410, 510, 630, 720, 860
Input Power
Up to 12 kW (16 HP)
Output Torque
Up to 950 Nm (7600 lb.in.)
Gear Ratios
Up to 70:1 in single stage, 4900:1 in double reduction
Motor Sizes
IEC Frames from 63 to 132; NEMA Frames from 56 to 215
