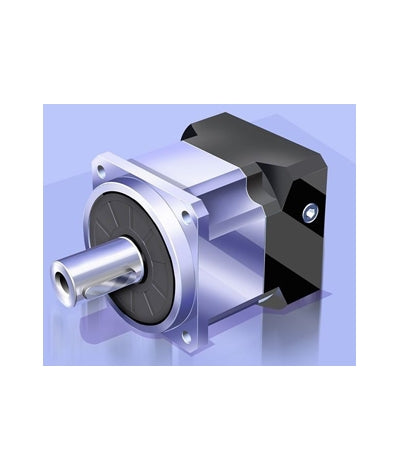

The Apex AB series Powerful, precise, robust, quiet and fast, suitable for all servo applications.The Apex AB series is the next generation in planetary technology. Highest precision, highest torque and quiet operation are provided by 100% optimized helical gearing. Straddle mounted high precision bearings allow for high radial and axial loads.

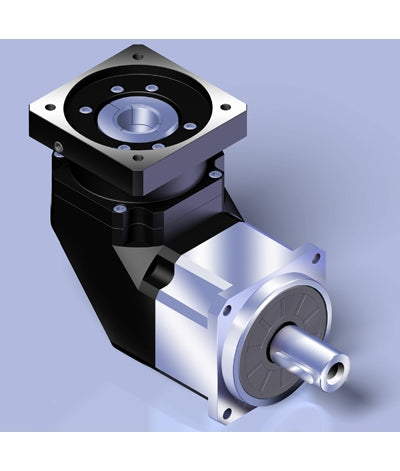

The Apex ABR series has a 90 input via helical bevel gear. It features an extremely short, light yet rigid housing and full compatibility with standard motor adapters. Highest precision, highest torque and quiet operation are provided by 100% optimized helical gearing. Straddle mounted high precision bearings allow for high radial and axial loads.

Product Highlights

  • True Helical Gear Design
    Precision helical gearing increases tooth to tooth contact ratio by over 33% vs spur gearing. The helix angle produces smooth and quiet operation with decreased backlash (less than 1 arc-minutes and 56dB).
  • Triple split collet with dynamic balanced set collar clamping system
    provides backlash free power transmission and eliminates slippage. 100% concentricity allows for smooth rotation and higher input speed capability.
  • Bushing Module System Design
    The unique motor adapter and bushing module system design allows for quick and easy mounting of any motor.
  • A Special Non-Electrolysis Nickel Surface Treatment
    A special non-electrolysis nickel surface treatment on the output housing and black anodized aluminum input adapter are provided for the most extreme environmental conditions.
  • Single Piece Structured Ring Gear with Housing
    Helical Internal ring gear is machined directly into a single piece of steel. Maximized diameter and number of teeth to improve overall performance and torque capacity.
  • NYOGEL 792D
    Lubricated with Nyogel 792Dsynthetic grease (Smart Grease) and sealed to IP65 standards prevent leakage and is maintenance free.
  • Whole Piece Planet Carrier Design
    One piece planet carrier with extended bearing design provides maximum radial load capacity and increases system reliability and stiffness.
  • In-House Plasma Nitriding Heat Treatment
    Our in house plasma nitriding heat treatment process maintains the tooth surface hardness at 900Hv for superior wear-resistance and a core hardness at 30HRc for toughness.
  • HeliTopo Technology
    A high setting gear performance is achieved by using our HeliTopo Technology. This eases off the tooth profile and crowns the lead of each tooth. This optimizes the gear mesh alignment and overlap to achieve maximum tooth surface contact.
  • Solid Needle Roller Bearings Without Cage
    Equipped with solid uncaged needle roller bearings, provides maximum contact points to increase stiffness and generates high output torque.
  • NEW - Patented Output Sealing System Design
    NEW - Patented output sealing systems design eliminates friction and heat generation which is accomplished by applying our hi-tech coating to all output contact surfaces. This coating reaches a hardness of 3700Hv and is ground to Ra 0.2mm finish to ensure sealing.
  • NEW - Patented Input Sealing System Design
    NEW - Patented input sealing system design eliminates break away torque and decreases friction/heat. The hi-tech coating bushing (3700 Hv, Ra 0.2 mm finish) interfaces with our proprietary seal which decreases wear and erosion of both sealing surfaces. This new patent prevents leakage and has a service life of over 20,000 hours.
  • Patented Planet Carrier Design
    Patented planet carrier design puts the sun gear bearing directly into the planet carrier. It minimizes gear misalignment to gain higher accuracy.
  • Solid, single piece sun gear construction obtains precise concentricity with increased strength and rigidity.

Technical Specifications

  • AB Series
  • ABR Series

Output Torque

T2N: 14 Nm - 2000 Nm

Ratios

1-stage : 3/4/5/6/7/8/9/10

2-stage : 15/20/25/30/35/40/45/50/60/70/80 /90/100

Low Backlash

1-stage : 1arcmin/3arcmin/5arcmin

2-stage : 3arcmin/5arcmin/7arcmin

High Efficiency

1-stage: 97%

2-stage: 94%

Sizes

All sizes available:
AB042 / AB060 / AB060A / AB090 / AB090A / AB115 / AB142 / AB180 / AB220

Others

  • Easy Mounting
  • Low Noise
  • Compact Structure

Output Torque

T2N: 9 Nm - 2000 Nm

Ratios

1-stage: 3/4/5/6/7/8/9/10/14/20

2-stage: 15/20/25/30/35/40/45/50/60/70/80/90/100/120/140/160/180/200

*Only ABR042 2-stage offers 15,20 option

Low Backlash

1-stage: arcmin/4arcmin/6arcmin

2-stage: 4arcmin/7arcmin/9arcmin

High Efficiency

1-stage: 95%

2-stage: 92%

Sizes

All sizes available:
ABR042/ABR060/ABR090/ABR115
ABR142/ABR180/ABR220

Others

  • Easy Mounting
  • Low Noise
