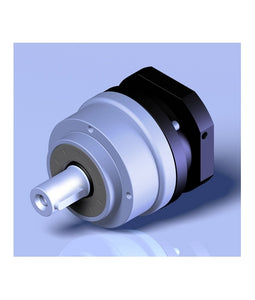

The Apex AE series is unique to the market. Apex is the only manufacturer that produces a cylindrical helical stainless steel gearbox world wide. High precision, high torque and quiet operation are provided by 100% optimized helical gearing. Straddle mounted high precision bearings allow for high radial and axial loads.

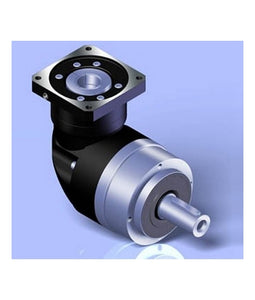

The Apex AER series has a 90 input via helical bevel gear. Features an extremely short, light yet rigid housing and full compatibility with standard motor adapters.Apex is the only manufacturer that produces a cylindrical helical stainless steel gearbox world wide. High precision, high torque and quiet operation are provided by 100% optimized helical gearing. Straddle mounted high precision bearings allow for high radial and axial loads.

Technical Specifications

  • AE Series
  • AER Series

Output Torque

T2N : 14 Nm - 2000 Nm

Ratios

1-stage : 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10

2-stage : 15/20/25/30/35/40/45/50/60/70/80/90/100

Low Backlash

1-stage : 8 arcmin

2-stage : 12 arcmin

High Efficiency

1-stage : 97%

2-stage : 94%

Others

  • Easy Mounting
  • Low Noise
  • Compact Structure

Output Torque

T2N : 9 Nm - 2000 Nm

Ratios

1-stage : 3/4/5/6/7/8/9/10/14/20

2-stage : 15/20/25/30/35/40/45/50/60/70/80/90/100/120/140/160/180/200

*Only AER050 2-stage offers 15,20 option

Low Backlash

1-stage : 10 arcmin

2-stage : 14 arcmin

High Efficiency

1-stage : 95%

2-stage : 92%

Others

  • Easy Mounting
  • Low Noise
  • Compact Structure
