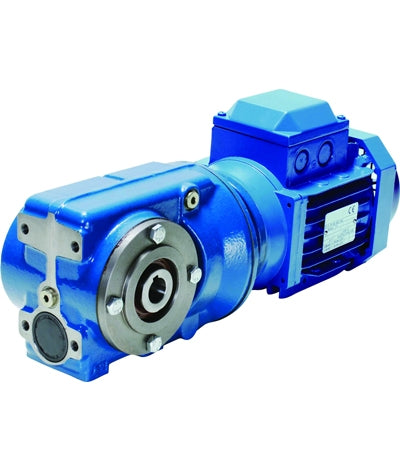

Series C Helical Worm Gearmotors
Series C Helical Worm Gearmotors

Series C Helical Worm Gearmotors

Regular price
Regular price
Sale price
Unit price
Sold out

C Series right angle helical worm geared motors and reducers provide a highly efficient and compact solution to meet most requirements up to 45 kW with maximum output torque capacity of 10,000 Nm.

The C Series product adds to the growing family of new drives which has taken advantage of our many years of accumulated design expertise, together with the use of high quality materials and components. The end result is a series of speed reducing and geared motors offering high load carrying capacity, increased efficiency, quiet running and reliability.


  • Accepts standard IEC motors
  • Dimensionally Interchangeable with many gear brands
  • Energy efficient right angled drive
  • Motors fitted without modification
  • Oil tight gear head
  • Versatile mounting
  • Wide range of ratios
  • Fast and low cost motor replacements readily available
  • No modification required when replacing existing gear unit
  • Save energy and running costs
  • Saves time when replacing failed motors
  • Enables motor removal without oil spillage
  • Shaft mounting or foot mounting with same gearbox
  • Comprehensive range of speeds available

Technical Specifications

Unit Sizes
03, 04, 05, 06, 07, 08, 09, 10
Input Power
Up to 45 kW
Output Torque
Up to 11,000 Nm
Gear Ratios
8:1 to 250:1 in double reduction units, up to 900:1 in triple reduction units and 60,000:1 in combined units
Motor Sizes
IEC Frames from 63 to 225; NEMA Frames from 56 to 326
