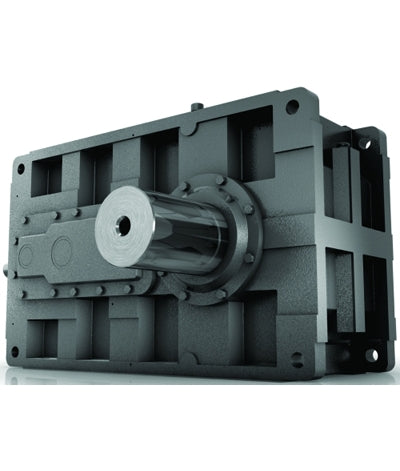

PalaDrive Series G Parallel Shaft Reducer
PalaDrive Series G Parallel Shaft Reducer

PalaDrive Series G Parallel Shaft Reducer

Vendor
PalaDrive
Regular price
Regular price
Sale price
Unit price
per
Availability
Sold out

This product takes advantage of our many years of accumulated design expertise together with the use of high quality materials and components, and has the following features & benefits:

  • Case hardened and ground helical gears, and hard finished spiral bevel gears have optimised gear geometry to maximise strength and efficiency, and to minimise noise and vibration.
  • Horizontal split case design for ease of maintenance.
  • Large diameter output shaft and bearings to maximize overhung load capacity.
  • Innovative modular construction has minimised part count to maximise availability of product.
Features
  • Lip, Labyrinth and Face Seal on input, Lip Seal and Labyrinth on output shaft
  • Vertical units have a Drywell sealing arrangement
  • Spherical roller bearings throughout (tapers roller bearings on bevel pinion shaft)
  • Large diameter output shaft, higher over hung loads
  • Hollow bore and shrink disc options gives versatility in mounting
  • External hold back, allows for inspection
  • Atex compliant
Benefits
  • Better sealing for harsher environments
  • No head of oil resting on the output seal
  • Provides longer life
  • Best option for stirrer applications
  • Hollow bore reduces alignment issues
  • Reduced down time
  • Can be supplied against Group 2 or 3 for surface industries in designated Hazardous locations, Zones 1 and 2 for gases, vapours and mists and Zones 21 and 22 for dust.

Technical Specifications

Unit Sizes
14, 15, 16, 17, 18, 19, 21, 22
Input Power
Up to 1,860 kW
Output Torque
Up to 162,000 Nm
Gear Ratios
6.3:1 to 315:1 in double reduction units and? up to 70,000:1 in combined units
Output Shaft
Up to 240 mm
Motor Sizes
IEC Frames from 200 to 315; NEMA Frames from 254 to 445
