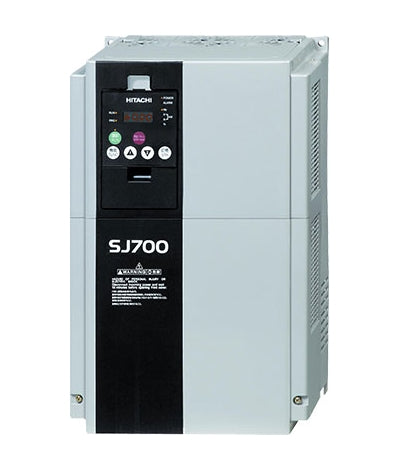

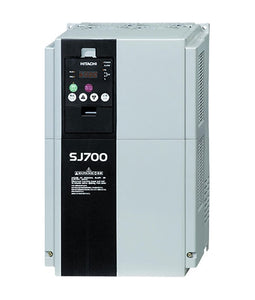

Hitachi Inverter SJ700D Series
Hitachi Inverter SJ700D Series

Hitachi Inverter SJ700D Series

Vendor
Hitachi
Regular price
Regular price
Sale price
Unit price
per
Availability
Sold out

Key Features

1) Dual Rating

  • SJ700D can be used for both heavy and normal duty. One-frame-size smaller SJ700D may be applicable for variable torque applications

2) Induction Motor & Permanent Magnetic Motor Control with One Inverter

  • The SJ700D series inverter can drive both induction motors (IM) and permanent magnetic motors (PM).

3) High Starting Torque, Powerful Drive and Easy Setting

  • High starting torque of 200% or greater at 0.3 Hz
  • Hitachi original 0Hz Domain sensorless vector control
    Keep 150%* torque at 0Hz speed signal
  • Crane applications require high torque at starting
    *(1) 150% torque in case 1 frame big inverter capacity of motor

4) Trip Avoidance Function

  • Over current & voltage suppress function
  • Higher internal calculation speed* improve current control performance avoid inverter trip during acceleration and deceleration period.

5) Programming [EzSQ: Easy Sequence] Function

  • Inverter control by built-in programming function
  • Simple sequence operation is realized by downloading to an inverter the program created by programming soft EzSQ.
  • Possibility of automatic speed control according to a load situation like a swift lift function for crane or a conveyor, and to operate.

6) Internal Option

  • Built-in EMC Filter
  • Cost and space reduction compared with external EMC filter
  • Reduces electromagnetic noise
  • Brake circuit up to 22kW
  • Cost and space reduction compared to external braking controller

7) Ease of Maintenance

  • Easy-removable construction for maintenance.
  • Field replacement of cooling fan(s) and DC bus capacitor can be accomplished in a fraction of the time.
  • Cooling fan ON/OFF control provides longer life.
  • Using Logic terminal move to SJ700/SJ700D Series without wiring change.
  • Read SJ300 Parameter by WOP remote operator and write them in to SJ700/SJ700D Series

8) Long Life Time Components & Lifetime Warning Function

  • Long life time components
  • Design lifetime 10 Years or more DC bus capacitor & cooling fan.
  • Cooling Fan ON/OFF control lead more longer life time
    *Ambient temperature : Average 40 deg C (no corrosive gasses oil mist or dust) Design lifetime is calculation and out of guaranty.
    Life time warning function.
  • Avoid trouble before the malfunction by lifetime warning signal
  • Replace the components before the malfunction

9) Easy Operation

  • User selection of Parameter functions
  • Data comparison function
  • A display of only the parameter changed from the default is possible
  • User selected function
  • Indication User setting 12 Parameters as U001-U012

10) Network Compatibility

  • The port corresponding to RS-485 Modbus-RTU is equipped as standard.
  • The communication speed is available up to 115.2kbps.
  • SJ700/SJ700D Series can communicate with DeviceNet PROFIBUS-DP with communication options.

11) Global Standards

  • Conformity to global standards. CE, UL, c-UL, C-Tick approvals.
    Logic input & output Terminal apply sink & source logic.
  • Wide Input power voltage range.
  • Input voltage 240V for 200V class and 480V for 400V class as standard.

12) Environmental Friendliness

  • Micro surge voltage suppress function
  • Hitachi original PWM control suppressing motor terminal voltage less than 2 times of INV\ DC voltage E. Lower than Hitachi motor Max. insulation voltage (1,250V) (during regenerating operation increase the DC bus voltage may over motor max. insulation voltage)
  • EU RoHS compliant by restricting to use hazardous substances. (except solder in power module)
  • Varnish coating of internal PC board & plating of main circuit copper bus bar as standard.

13) 5-Line LCD Operator (Optional : WOP)

  • 5-Line LCD operator
  • Real time clock built in
  • 4 sets of used parameter configurations can be saved and transferred.
  • Two color backlight that distinguish trip status.
  • User selectable content for display.
